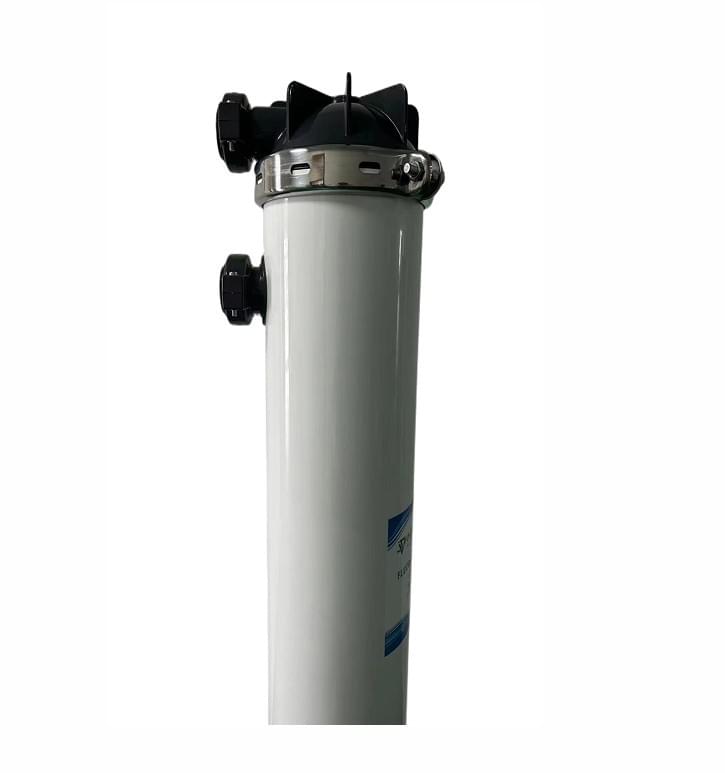

Steza UF Module
Steza UF Module an economical replacement for Suez ZeeWeed 700B 10060, as an integrated membrane technology provider, we have strict quality control procedure and internal test to make sure module provides equivalent performance to Suez (GE) ZeeWeed. With 0.02μm pore size, can effectively retain particles, bacteria and virus and produce clean water which makes is suitable for drinking water treatment, pretreatment for reverse osmosis, industrial wastewater treatment etc.
Specification
Model DFPES700B-60 Specification Membrane material PES Housing material UPVC Pore size(µm) 0.02 Membrane area(m2) 60 Overall length with end caps(mm) 1.682 Module diameter(mm) 250 Feed/Filtrate port 2" Victaulic Potting material Epoxy resin Operation parameter Max.chlorine concentration(ppm) 200 pH range during operation 2-11 pH range during cleaning 1-13 Max backwash pressure(Mpa) 0.2 Max feed pressure(Mpa) 0.5 Max backwash flow(L/H) 250LMH Max working temperature 40°C Design flux(LMH) 50-120
